Description

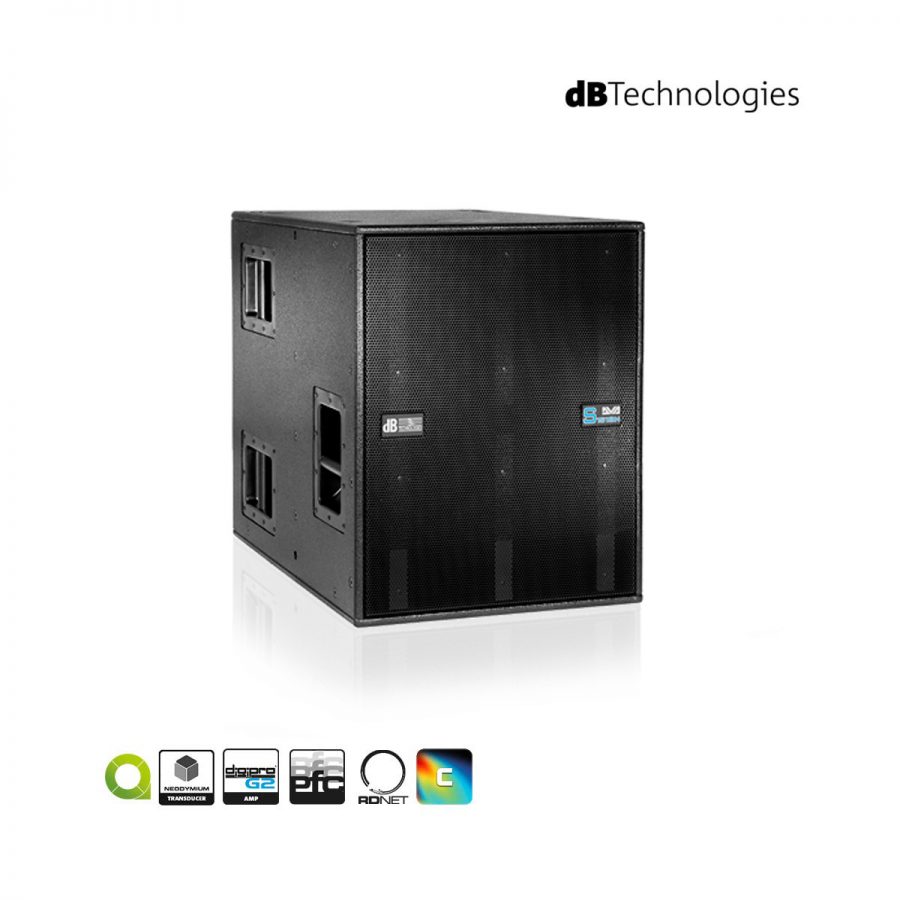

DVA S1518N Subwoofer, 18″, Bandpass
The DVA S1518N is equipped with a next-generation, 18″ woofer driven by a built-in 1500W digipro® G2 digital power amp.
Subwoofer arrays are easily flown using the optional SRK10 rigging hardware retrofit.
The S1518N will also serve you well in compact stacks paired with DVA T12, T8 and T4 units or DVX Series enclosures.
Equipped with PFC switched-mode power supplies, they are largely impervious to line voltage fluctuations, which is a tremendous asset in a touring rig.
Our network-enabled DVA subwoofers are designated by an “N” in the product name.
They feature a premium-quality DSP boasting excellent audio specs with variable crossover frequencies, precise limiter functions and adjustable delay settings for perfect time alignment.
Specifications
| Technical Data | |
| Speaker Type | Active Bandpass Subwoofer |
| Acoustical data | |
| Frequency Response [+/- 3dB] | 39 – 120 Hz |
| Max SPL | 138 dB |
| Directivity | Omnidirectional, Cardiod Option with DSP setup |
| LF | 18 “ |
| Voice Coil LF | 4 “ |
| Amplifier | |
| Amp Technology | Digipro® G2 |
| Amp Class | Class D |
| Power Supply | 1.5 kW SMPS |
| LF Amp | 1500 W RMS |
| Cooling | Convection |
| Processor | |
| Controller | DSP 56 bit |
| AD/DA Converter | 24bit/ 96 kHz |
| System Presets | X-Over,Delay |
| Phase | 0, 180 ° |
| Limiter | RMS, Peak, Thermal |
| Delay Option | 0-4.5 ms internal |
| Crossover Frequency LF-MF75 | 120Hz | steps of 5Hz |
| LF-Xover out slope | 24 dB/Octave |
| Mechanics | |
| Housing | Multiplex plywood |
| Housing Design | Rectangular |
| Handles | 3x Per Side |
| Accessory | Dolly, Wheels 100mm,Dust Cover, Rain Cover |
| Pole | MountM20 |
| Rigging Points | integrated for SRK10 fly kit2xPick Points on top to fix DRK10/20 rigging frames |
| Width | 515 mm (20.6 in) |
| Height | 640 mm (25.6 in) |
| Depth | 720 mm (28.8 in) |
| Weight | 46 kg (101.41 lbs) |
