Description
KL 12 is a 2-way active speaker equipped a 12” woofer and one 1” compression driver (1.35 voice coil)
The system is driven by a powerful and efficient 800 W amplifier featuring Db Technologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.

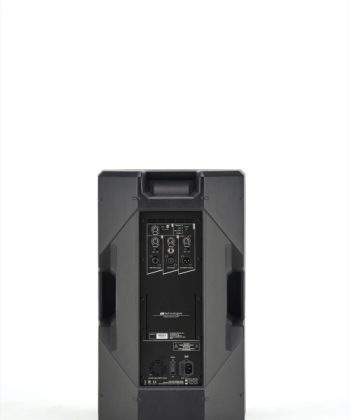

All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth® connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).
The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dB Technologies Subs.
KL comes with its soft cover equipped with a pocket specially designed for cable storage.
Specifications
General Specifications
|
Technical Data |
|
|
Speaker Type |
2-Way Active Speaker |
|
Acoustical data |
|
|
Frequency Response [-10dB] |
52 – 18.000 Hz |
|
Max SPL |
127 dB |
|
HF |
1″ CD, 1.35″v.c |
|
LF |
12″, 2.5″ v.c. |
|
Dispersion |
90°x60° |
|
Crossover Frequency |
1800 Hz (24 dB/oct.) |
|
Amplifier |
|
|
Amp Technology |
Class D(LF)+Class AB (HF) |
|
Peak Power (LF+HF) |
800 W |
|
Processor |
|
|
Controls |
1xVolume, 1xslide switch mic/line |
|
Indicators |
power on/signal/limiter LEDs |
|
Controller |
DSP 20/56 bit |
|
AD/DA Converter |
24 bit/ 48 Hz |
|
Systems Presets |
Playback, Flat, Bass Boost, Wedge |
|
Limiter |
Peak, RMS, Thermal |
|
Advanced DSP Functions |
Linear Phase FIR Filters |
|
Input |
|
|
Signal Input |
1x Combo(XLR/Jack) Mic/Line 1xXLR/TRS |
|
Signal Output |
1xXLR Male (LINK/MIX) |
|
Bluetooth Input |
1xBluetooth receiver |
|
Mechanics |
|
|
Housing |
Polypropylene |
|
Handles |
3 (2 on side 1 on top) |
|
Angles Up |
Monitor Use 45° |
|
Pole Mount |
36 mm, double positioning |
|
Width |
365 mm (14.37 in) |
|
Height |
622 mm (24.50 in) |
|
Depth |
342 mm (13.46 in) |
|
Weight |
16.5 kg (36.37 lbs) |
