Description

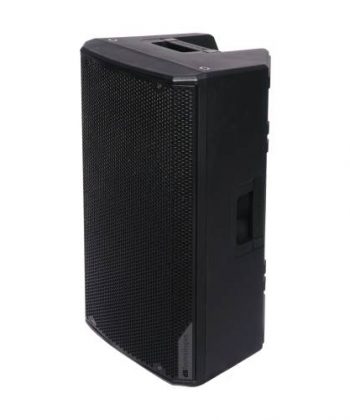

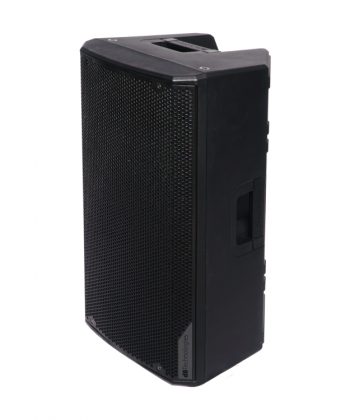

OPERA’s potential grows even further with OPERA UNICA: 2 brand new models (12” and 15”) featuring CLASS D DIGIPRO G3 amp module delivering up to 1800 W peak and neodymium woofers.
What makes OPERA UNICA series “unique” in dB Technologies’ active loudspeaker range is its networkable capability via Aurora Net control software (available in free download at dB Technologies website), using the integrated RDNET ports, allowing a complete EQ, delay and processing customization and real time monitoring of the PA system in use.
Opera’s distinctive asymmetrical acoustic design of the HF horn ensures optimized coverage. Furthermore, sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.
The perfect features’ mix making OPERA UNICA ready for the most demanding professional users.
Specifications
General Specifications
|
Technical Data |
|
|
Speaker Type |
2-Way Active Speaker |
|
Acoustical data |
|
|
Usable Bandwidth [-10dB] |
67 – 20.000 Hz |
|
Frequency Response [- 6dB] |
73 – 20.000 Hz |
|
Max SPL |
132 dB |
|
HF |
1″ Exit, 1.75 v.c. |
|
Horizontal Directivity |
100° (85° up/120° down) |
|
Vertical Directivity |
85° (+ 25°/-60°) |
|
Horn |
Asymmetrical Horn |
|
LF |
12″, 3″ v.c. |
|
Amplifier |
|
|
Amp Technology |
Class D DigiproG3 |
|
RMS Power |
900 W |
|
Peak Power |
1800 W |
|
Processor |
|
|
Controller |
DSP 56 bit |
|
AD/DA Converter |
24 bit/48 KHz |
|
Controls |
Rotary Encoder (8 Presets) 1x Input Sensitivity 1x Power ON led 1x Signal led 1x Limiter Led 1x Status Led |
|
CrossOver Frequency |
1600 Hz |
|
Limiter |
Peak, RMS, Thermal |
|
Advanced DSP Functions |
Linear Phase FIR Filters |
|
Delay Option |
58.6 ms max (via RD Net) |
|
Input |
|
|
Signal Input |
1x XLR Female 1x USB (data service) |
|
Signal Output |
1x XLR Male |
|
Mechanics |
|
|
Housing |
Polypropylene PP |
|
Handles |
1 on left Side, 1 on Top |
|
Rigging Points |
2XM10 on Top + 1x M10 on Back |
|
Pole Mount |
D36 mm |
|
Angles up |
Monitor use 45° |
|
Width |
350 mm (13.78 in) |
|
Height |
642 mm (25.28 in) |
|
Depth |
349 mm (13.74 in) |
|
Weight |
15 kg (33.07 lbs) |
Manuals & Downloads
The latest owner’s manuals, quick start guides, and documents.
- Description
-
Description
OPERA’s potential grows even further with OPERA UNICA: 2 brand new models (12” and 15”) featuring CLASS D DIGIPRO G3 amp module delivering up to 1800 W peak and neodymium woofers.
What makes OPERA UNICA series “unique” in dB Technologies’ active loudspeaker range is its networkable capability via Aurora Net control software (available in free download at dB Technologies website), using the integrated RDNET ports, allowing a complete EQ, delay and processing customization and real time monitoring of the PA system in use.
Opera’s distinctive asymmetrical acoustic design of the HF horn ensures optimized coverage. Furthermore, sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.
The perfect features’ mix making OPERA UNICA ready for the most demanding professional users.
- Specifications
-
Specifications
General Specifications
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Usable Bandwidth [-10dB]
67 – 20.000 Hz
Frequency Response [- 6dB]
73 – 20.000 Hz
Max SPL
132 dB
HF
1″ Exit, 1.75 v.c.
Horizontal Directivity
100° (85° up/120° down)
Vertical Directivity
85° (+ 25°/-60°)
Horn
Asymmetrical Horn
LF
12″, 3″ v.c.
Amplifier
Amp Technology
Class D DigiproG3
RMS Power
900 W
Peak Power
1800 W
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 KHz
Controls
Rotary Encoder (8 Presets)
1x Input Sensitivity
1x Power ON led
1x Signal led
1x Limiter Led
1x Status Led
CrossOver Frequency
1600 Hz
Limiter
Peak, RMS, Thermal
Advanced DSP Functions
Linear Phase FIR Filters
Delay Option
58.6 ms max (via RD Net)
Input
Signal Input
1x XLR Female
1x USB (data service)
Signal Output
1x XLR Male
Mechanics
Housing
Polypropylene PP
Handles
1 on left Side, 1 on Top
Rigging Points
2XM10 on Top + 1x M10 on Back
Pole Mount
D36 mm
Angles up
Monitor use 45°
Width
350 mm (13.78 in)
Height
642 mm (25.28 in)
Depth
349 mm (13.74 in)
Weight
15 kg (33.07 lbs)
- Manuals & Downloads
-
Manuals & Downloads
The latest owner’s manuals, quick start guides, and documents.
