Description
Two-Way 4″ Coaxial Ceiling Loudspeaker
Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
Specification
| Frequency Range (-10 dB) | 74 Hz – 20 kHz |
| Power Capacity (at low-Z) | 60 Watts Continuous Program Power 30 Watts Continuous Pink Noise |
| Transformer Taps | 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only) |
| Frequency Response (±3 dB) | 100 Hz – 20 kHz |
| Nominal Sensitivity | 87 dB |
| Nominal Coverage Angle | 120° conical coverage |
| Directivity Factor (Q) | 7.6 |
| Directivity Index (DI) | 8.1 dB |
| Rated Maximum SPL | 102 dB @ 1 m (3.3 ft) average, 108 dB peak |
| Nominal Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| LF Driver | 100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil |
| HF Driver | 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide |
| Input Connector | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
| Connector Wiring | Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru |
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Dimensions | 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth) |
| Ceiling Cutout Size | Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses |
| Safety Seismic Attachment | One point, top surface |
| Net Weight | 2.2 kg (4.8 lbs, one speaker) |
| Shipping Weight | 8.2 kg (17.9 lbs, pair in master carton) |
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille |
| Optional Accessories | MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
Manuals & Downloads
The latest owner’s manuals, quick start guides, and documents.
Specifications
| Data Sheets | |
| Control 14C/T Spec Sheet | 262 KB |
| Specifications | |
| Control 14C/T Spec Sheet | 688 KB |
| Manuals | |
| Ceiling Speaker Accessory Guide | 127 KB |
| Brochures | |
| Full Line 2015 Catalog | 11.7 MB |
| Commercial Sound Full Line 2015 Catalog | 2.02 MB |
| CAD Drawings | |
| Control 14C/T CAD Drawings | 822 KB |
| Bim Objects | |
| CONTROL 14C/T BIM Object | |
| Compliances | |
| Control 10 Series – Declaration of Conformity | 129 KB |
| JBL Control Series Passive Speakers DoC | 179 KB |
| Software | |
| Distributed System Design (DSD) v3.6.2 3.6.2 | 805 KB |
| Owner’s Manuals | |
| Control 10 Series Owner’s Manual | 390 KB |
| Ease Data | |
| Ease SPK/DLL Files – Full JBL Pro Line | 20.5 MB |
| Control 10 Series Ease Data | 350 KB |
| Accessories | |
| MTC-14WG/16WG High Humidity Grille | 762 KB |
| Speaker Tunings | |
| Commercial, CBT, and AWC Tunings 181030 | 557 KB |
| Images | |

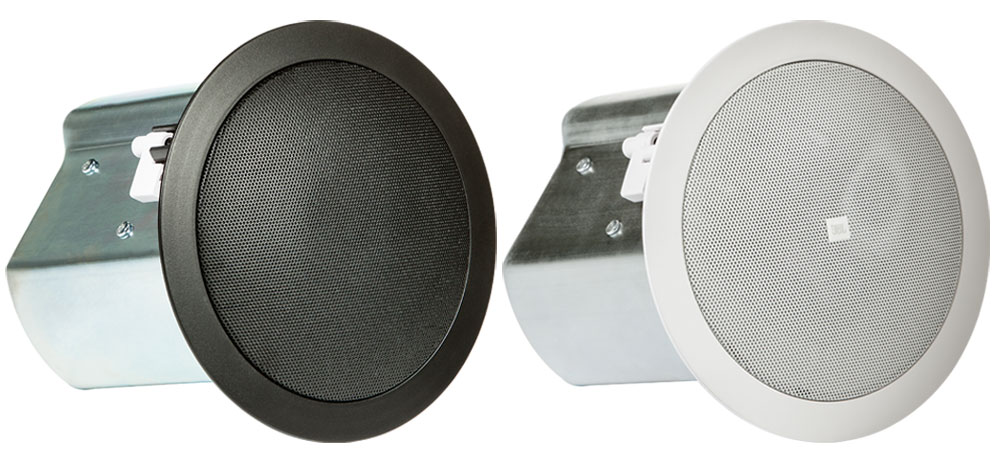

| Control 14C/T Black and White | 87.4 KB |

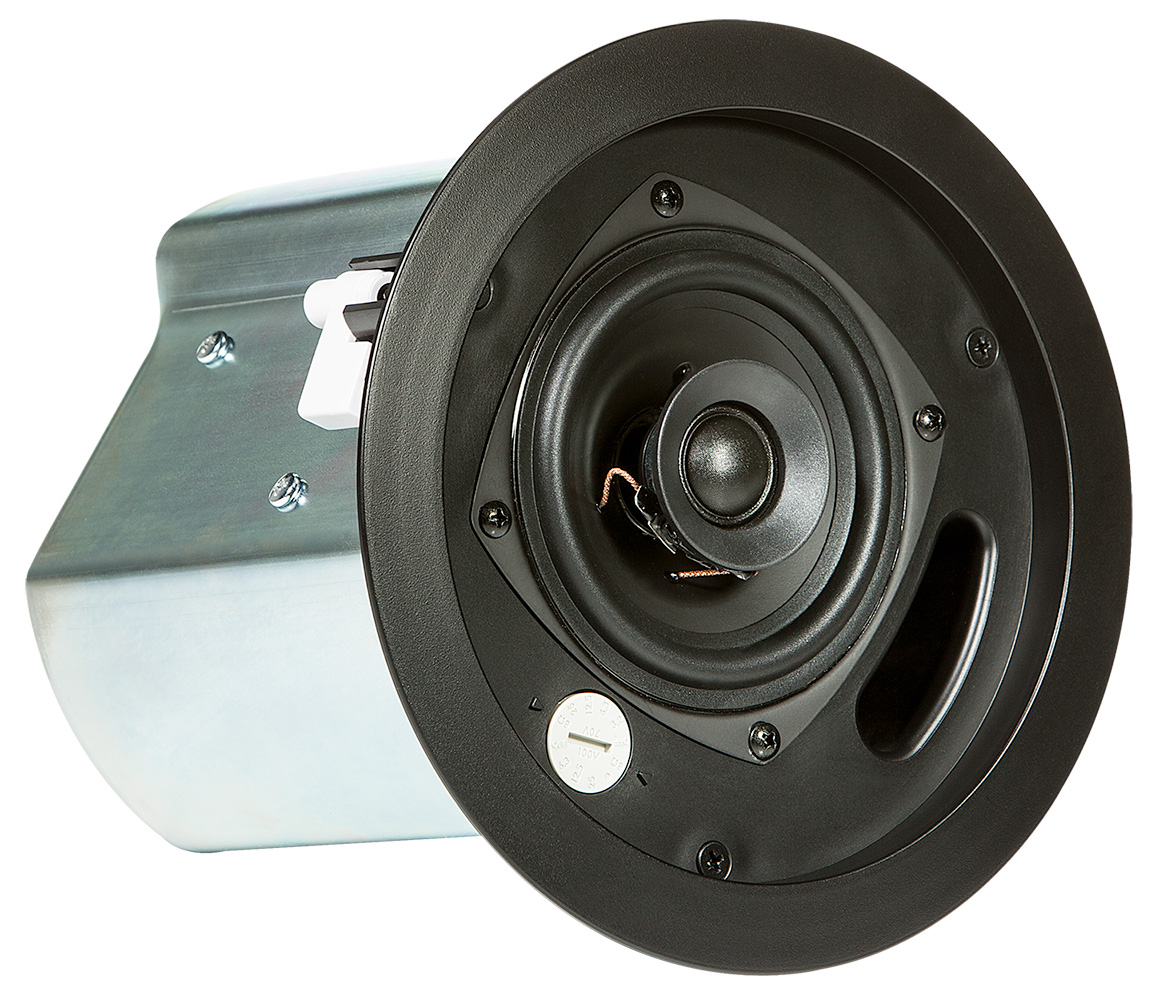

| Control 14C/T Black No Grill | 344 KB |

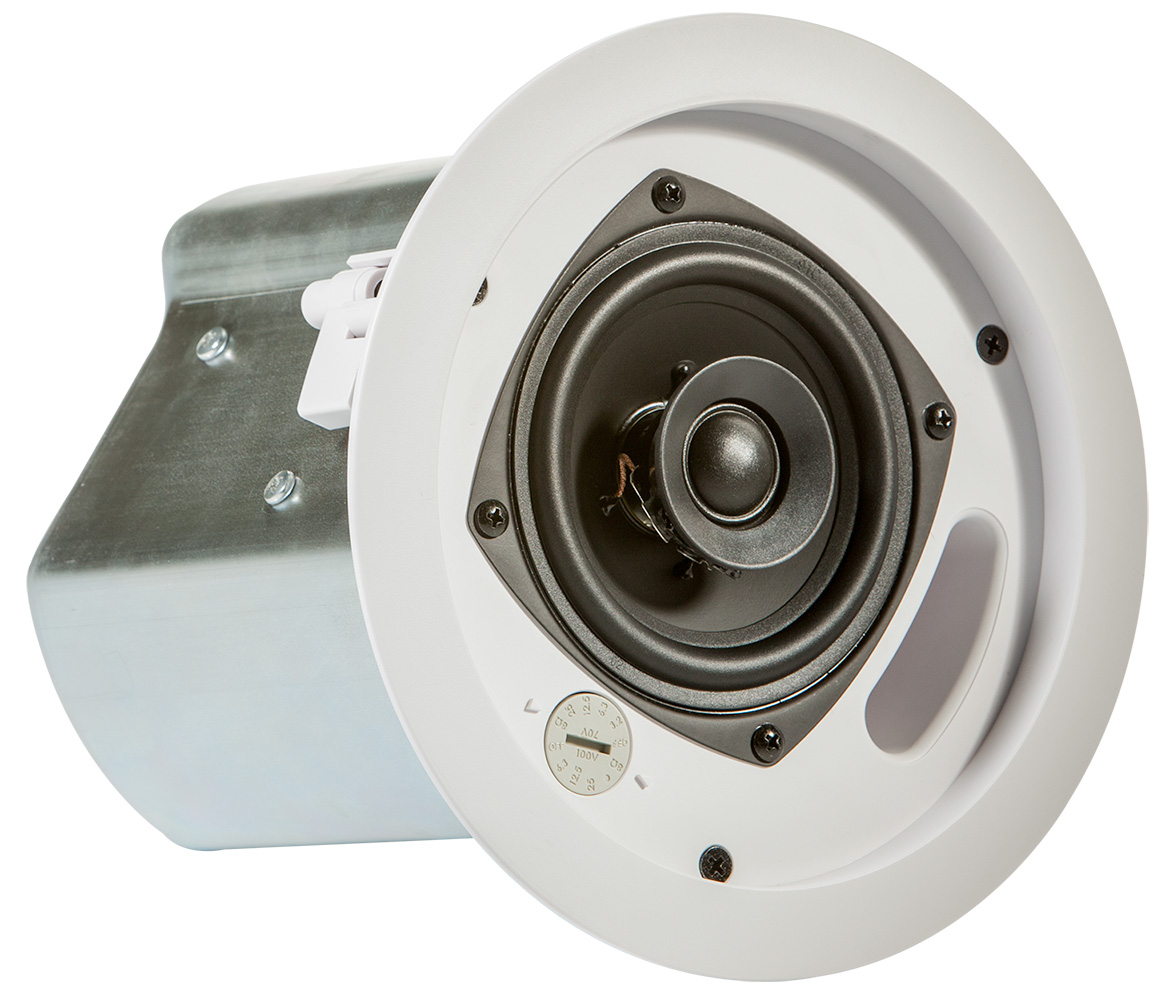

| Control 14C/T White No Grill | 215 KB |
